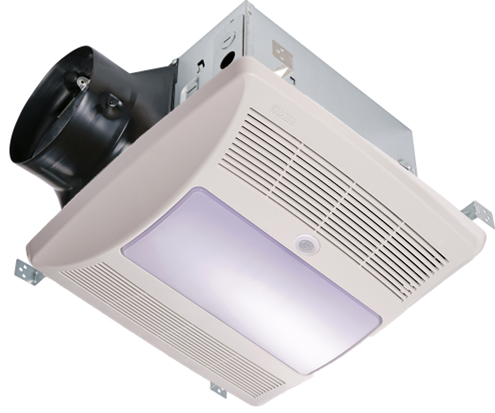

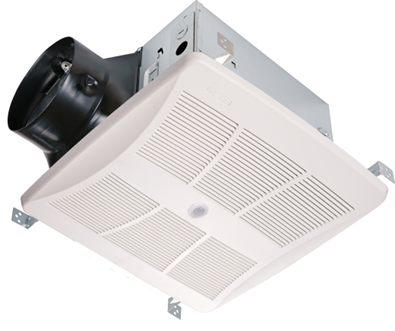

Broan-NuTone SEPD Series Exhaust Fans with Sensors and Light

ABreeze to Ultra Silent, High Performance, Attractive Design GrilleBroan-NuTone SEPD Series ex

A Breeze to Ultra Silent, High Performance, Attractive Design Grille

Broan-NuTone SEPD Series exhaust fans are designed to improve indoor air quality by efficiently removing stale air, excess moisture, and odours from any room in the home, and can also provide continuous, whole-house ventilation.

Key Features:

All Metal Box Design, More Durable: includes an attachable metallic Duct Connector with build in back draft damper

Multi-Speed DC Brushless Motor: designed to operate continuously with a built-in overload disconnect for safety and longer motor life

Built-in Humidity Sensor: when the ambient humidity increases, the exhaust function can be automatically turned on. It is also with a user adjustable set point (30%-80% relative humidity) available.

Build-in Motion Sensor: automatically activates the fan when someone enters the room.

Built-in Toggle Switch: for high speeds (153/204/272m3/h) selection.

LED lighting Integrated Design Panel: 10W LED light grille for energy efficiency (Model SEPD150MHL and SEPD150MHVL only)

405nm Visible Light Sterilization: 10W LED antibacterial light grille for energy efficiency (Model SEPD150MHVL only)

Model

SEPD150MH

SEPD150MHL

SEPD150MHVL

Grille Panel Material

Metal

Metal

Metal

Housing Material

Painted Stainless Steel

Painted Stainless Steel

Painted Stainless Steel

Some Applications

Bathroom, Toilet

Bathroom, Toilet

Bathroom, Toilet

Working Area (m²)

14

14

14

Air Volume (m³/h)

136/187/272

153/204/272

153/204/272

Rated Voltage (V)

220-240V

220-240V

220-240V

Rated Frequency (Hz)

50

50

50

Fan Speed (R.P.M)

500±50

500±50

500±50

Power Consumption (W)

13

25

25

Pressure (Pa)

140

140

140

Noise (dB)

34

34

34

Maximum Pipe Size (mm)

Ø150

Ø150

Ø150

Weight (Kg)

4.4

4.7

4.7

Installation Opening (mm)

289x267x194

289x267x194

289x267x194

Motor

SEPD140-3

SEPD140-3

SEPD140-3

Specification

Humidity Sensor,

Motion Sensor,

DC Motor

Humidity Sensor,

Motion Sensor,

LED 10w

(5000K)

DC Motor

Humidity Sensor,

Motion Sensor,

LED 10w

(405nm/only light 5000K, anti-bacteria), DC Motor
